AD12 Series

Product Name	Height	Width	Thickness	Plumbing Axes Center to center	Wall to Pipe center	Wall Distance	Tube Quantity
	mm	mm	mm	mm	mm	mm
	H	W	D	C	-	-
AD12-4/1600	1600	236	78	1555	63	103	4+4
AD12-6/1600	1600	354	78	1555	63	103	6+6
AD12-4/1800	1800	236	78	1755	63	103	4+4
AD12-6/1800	1800	354	78	1755	63	103	6+6
AD12-7/600	600	413	78	555	63	103	7+7
AD12-10/600	600	590	78	555	63	103	10+10
AD12-13/600	600	767	78	555	63	103	13+13

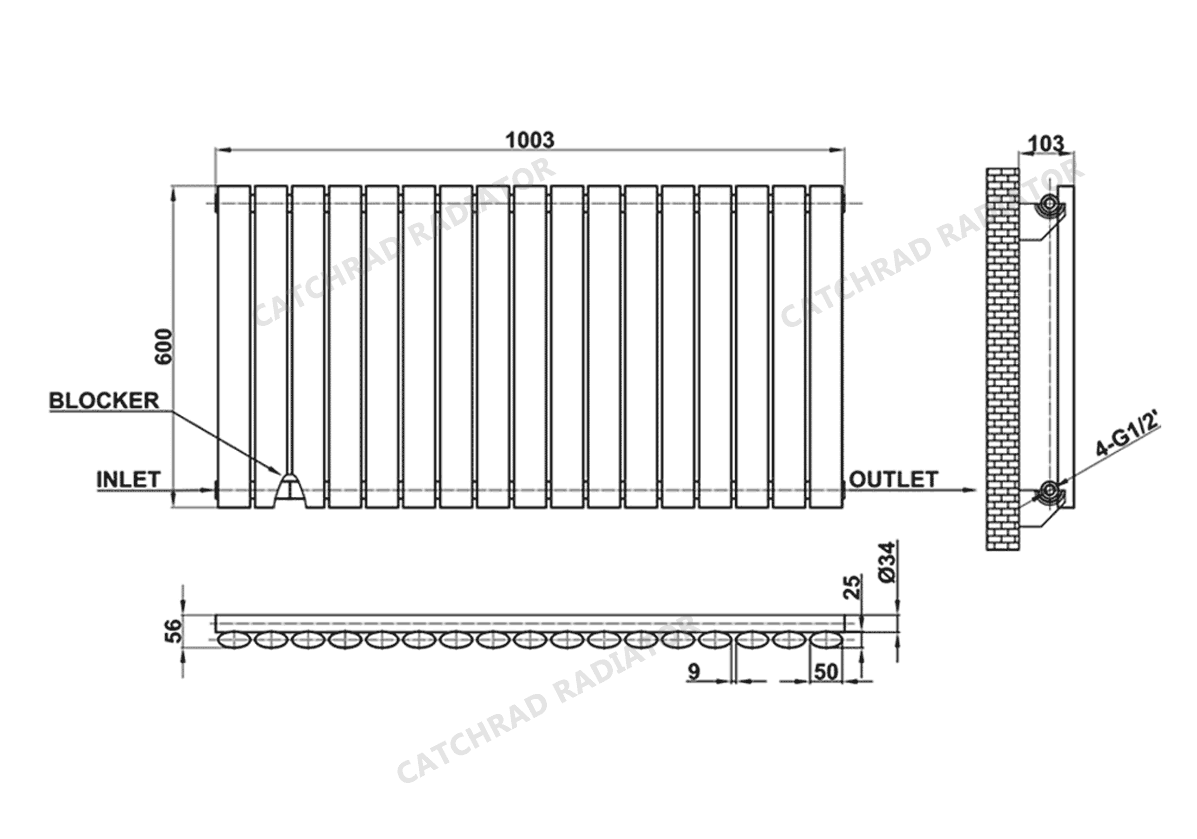

AD12-17/600	600	1003	78	555	63	103	17+17
AD12-20/600	600	1180	78	555	63	103	20+20
