AD31 Series

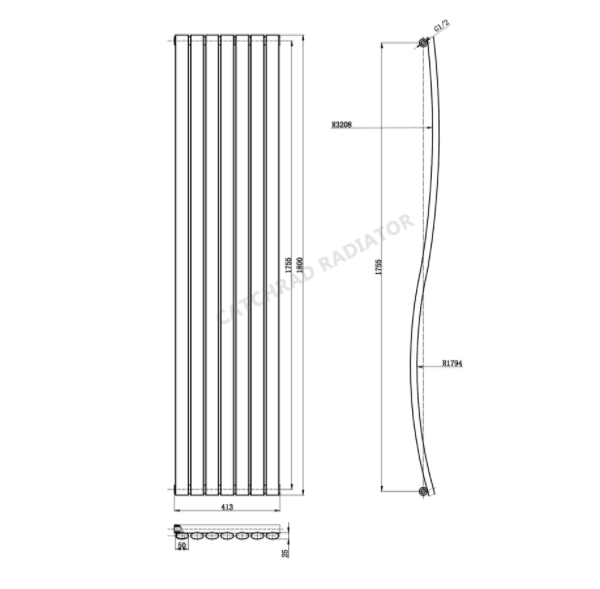

| Product Name | Height | Width | Thickness | Plumbing Axes Center to center | Wall to Pipe center | Wall Distance | Tube Quantity |
| mm | mm | mm | mm | mm | mm | ||
| H | W | D | C | - | - | ||
| AD31-5/1800 | 1800 | 295 | 56 | 1755 | 63 | 103 | 5 |
| AD31-6/1800 | 1800 | 354 | 56 | 1755 | 63 | 103 | 6 |
| AD31-7/1800 | 1800 | 413 | 56 | 1755 | 63 | 103 | 7 |
| AD31-8/1800 | 1800 | 472 | 56 | 1755 | 63 | 103 | 8 |
